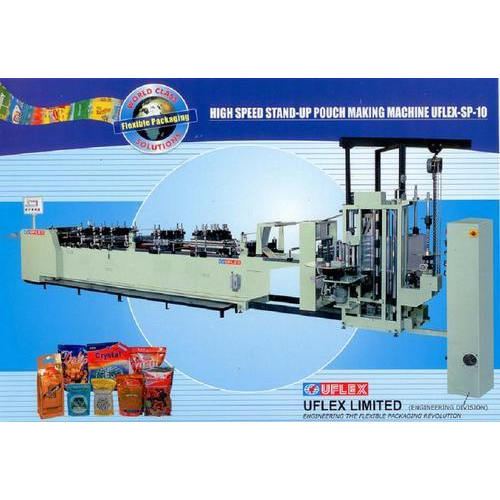

Automatic Pouch Making Machine

15000000 INR

Get a Price/Quote

Product Details:

Computerized Yes
Automatic Grade Automatic
Control System PLC Control
Drive Type Electric
Supply Ability : Per Week
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Price And Quantity

Minimum Order Quantity 1 Piece
Price 15000000 INR

Product Specifications

Drive Type Electric
Control System PLC Control
Automatic Grade Automatic
Computerized Yes

Trade Information

Supply Ability Per Week
Delivery Time 12-16 Week
Main Domestic Market All India

Product Description

Our well known corporation holds decades of specialization in manufacturing and exporting a best quality assortment of Automatic Pouch Making Machine to our respected clients. These machines are used for making three side seal pouch, pouch with zipper and stand up pouches. Operate at optimum speed, this superior quality Automatic Pouch Making Machine gives durable and sturdy range of pouches with excellent seal integrity.

Features

User friendly
Easy to operate and maintain
Ensure zero variation in pouch length

Specifications:

Automatic Pouch Making Machine is an intermittent machine for making three side seal pouch, pouch with zipper and stand up pouches.
The automatic pouch making machine is user friendly and can be operated easily.
Governed by PLC and a servo driven paper pulling mechanism results in zero variation in pouch length.
The machine runs at optimum speed and gives high quality pouches with superior seal integrity.

Technical Details:

Operation Speed	10 - 14M/min for 3 Side Seal Pouch 8 - 10M/min for Zipper Pouch 8 - 10M/min for Stand up Pouch Max up to 100 Shots mins Operation speed varies with respect to the film composition, film construction and the pouch size
Film Size	For Main Unwind Maximum 600mm, For bottom unwind Maximum 400mm
Film Roll Diameter	For Main Unwind Maximum 600mm, For bottom unwind Maximum 400mm
Pouch Size Range	For 3 Side Seal Zipper Pouch Width 60mm - 500mm, Length 60mm - 500mm For Stand up pouch 1 - up Width 75m - 250mm, Length 150mm - 500mm, Bottom Width 15mm - 75mm For Stand up pouch 2 up Width 75mm - 250mm, Length 75mm - 500mm, Bottom Width 15mm - 75mm
Production Line	Stand up pouch 1 - 2up, 3 Side seal pouch 1-4up. Zipper pouch 1-2 up
Electrical Supply	3 Phase 415Volts AC, 50Hz
Electrical Power Consumption	30KW (Max) The power consumption increase with the optional attachment
Product Counter	Voluntary Setting Counter
Prime Movers	Main motor AC 415volt/50Hz 3-Phase induction motor - 5Hp/1440 RPM Star Servo motor for film puling 2000 RPM with 14Nm Max. Torque Generation. Unwind motor - 4nos. AC 20volt/50Hz. 3Phase induction motor -Hp/1400 RPM Delta
Thermostat	PID Fuzzy logic controller with upper and lower limit control
Painting	Plain color standard color sea green. Customer's colour preference is acceptable painted areas machine body panels covers
Air	Consumption 60Cum/HR, Pressure 6 Bar, Water content <0.01% Air consumption varies with the addition of option attachment.
Water	Consumption : 8-15 Lt/Min Pressure : 1-2 Bar at machine, Temperature : 5-10 Deg C.
Applicative Film pouch material	Laminated multi layered film, film construction may influence the pouch making conditions
Control Panel	Operator's panel, Heater panel, Brake panel, Static charge neutralizer
Dimensions	Length : 8.5 meter, Width : 2.3 meter, Height : 2.7 meter
Weight	4250 kg (Approx)
