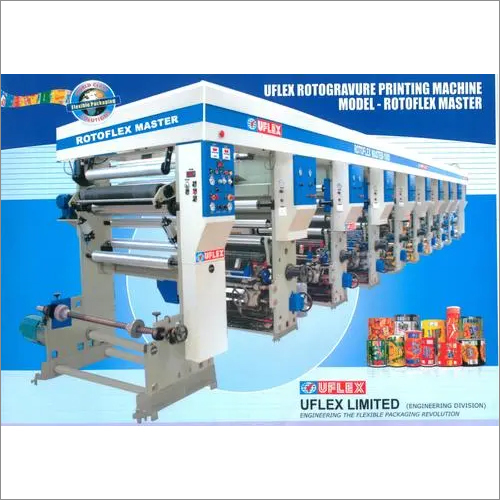

Rotogravure Printing Machines master

Rotogravure Printing Machines master
Rotogravure Printing Machines master
Send Inquiry
Product Code : 25
Brand Name : Uflex
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Price
  • 15000000 INR
Product Specifications
  • Type
  • Rotogravure Printing Machines master(MLS)
  • Material
  • BOPP, PVC, PET,LDPE etc.
  • Printing Speed
  • 150 meters/ minute. PPM
  • Computerized
  • Yes
  • Automatic Grade
  • Automatic
  • Ink Type
  • Other
  • Control System
  • PLC Control
  • Power
  • 415 V ± 10%, 50 Hz ± 2%, 3ph Electromagnetic (emu)
Product Description

  • An ideal machine for those who want to experience QUALITY and TECHNOLOGY with average printing capacity output.

    Salient Features:

    • Modularly constructed machine (Provision for adding addition printing stations at a later stage)
    • Super simplex for easy loading / unloading of cylinder and impression rubber roller
    • Easy job setting which helps in faster changeover, provides more uptime for printing
    • Special design for impression rubber roller actuated with pneumatic pressure
    • Doctor Blade assembly with 5 motion, ensure printing and extra life for printing cylinders
    • Ideal direr design ensuring optimum utilization of hot air
    • Excellent web tension control and monitoring system

    MACHINE SPECIFICATIONS

    Number of printing stations maximum web width

    Multi Stations / as per requirement 1020 mm

    Unwinder

    Maximum Roll Diameter

    800 mm

    Inside Core Diameter

    76 / 152 mm

    Rewinder

    Maximum Roll Diameter

    800 mm

    Inside Core Diameter

    152 mm

    Typical Material range

    Polypropylene OPP / BOPP

    15-30 microns

    Polyester

    12-23 microns

    MET PET

    12-23 microns

    LDPE

    30-80 microns

    Paper

    40-80 Gsm

    Tension Range

    Depends on Material

    Speed

    Mechanical Speed

    150+ meter / minute

Trade Information
  • Supply Ability
  • Depends on Product Per Week
  • Delivery Time
  • 12-16 Week
  • Main Domestic Market
  • All India
  • Certifications
  • CE certifaction
