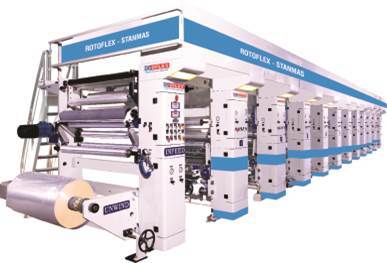

Rotoflex Super Printing Machine

Rotoflex Super Printing Machine
Rotoflex Super Printing Machine
Send Inquiry
Product Code : F-10
Brand Name : Uflex
Price And Quantity
  • Minimum Order Quantity
  • 1 Piece
  • Price
  • 15000000 INR
Product Specifications
  • Type
  • rotogravure printing machine
  • Printing Speed
  • 250 meters / min m/m
  • Automatic Grade
  • Automatic
  • Control System
  • PLC Control
Product Description

Spread across the huge sprawling premises of over 200 acres, we are an established global leader in manufacturing and exporting Rotogravure Printing Machine (Rotoflex Super) in India. It is mainly used for the purpose of printing variety of flexible packaging materials. Widely demanded in several industries, this Rotogravure Printing Machine (Rotoflex Super) range is available in different technical specifications to meet the diverse requirement of our clients.


  • Modular construction structure
  • Extremely user friendly
  • Equipped with panel view controls

Further Details

High Speed Rotogravure Printing Machine (Rotoflex super) an eight station rotogravure printing machine, with flying splice turret unwind an rewind facilities is for the purpose of printing flexible packaging materials.

Modular Construction

Machine is having modular construction structure. Each printing station is a complete entity by itself. Therefore a station or two can always be added even at a later stage provided that the main drive power rating is taken care of right in the beginning.

But also The printing cylinder within a width range of 800 mm to 1050 mm can be loaded, unloaded on each print station through a unique shiftless, pneumatic chucking arrangement. This is identical not only save the changeover time ensure the exact center to center locking. This is identical to the manner is which electronic engraving and mirror polishing is accomplished in a state of the art cylinder manufacturing facility.

Drive & Control System

  • The machine is equipped with seven DC motor integrated digital drive and PC, panel view controls.
  • The dedicated software prepared and perfected at Uflex R&D center is intensely interactive and extremely user friendly.
  • All the four tension zones are equipped with frictionless dance feed back devices, which ensure very precise actual web tension control.
  • The digital drive precision tension control, together with the automatic length register control equipment and the web viewing system ensure superb end result. These feature are the ultimate as far as the gravure press automation is concerned.
  • Additional Services
  • The sale of each Roto Flex 1000 is backed up by Foundation and placement engineering whereby reassembly is done within a tolerance of 0.02 mm for leveling and alignment prior to the actual commission.
  • Before the actual installation of the machine, operational and maintenance training can also provided at our works.

Technical Specifications:

Machine Specifications

Number of printing Stations

Multi Station up to 10

Maximum Web/Printing Width

020 / 100 mm

Minimum Web Width

600 mm


Maximum Roll Diameter

800 mm

Inside Core Diameter

76/152 mm

Direction of Unwinding

Two Direction

Direction of Splicing

One Direction

Tension Range

4-20 kg


Maximum Roll Diameter

800 mm

Inside Core Diameter

76/152 mm

Direction of Rewinding and Splicing

One Direction

Maximum Operating Speed

200 meter/min

Typical Material Range

Polypropylene OPP/BOPP

15-40 micron


10-25 micron


40-60 micron


40-80 gsm

Tension Range

Depends on material


Mechanical Speed

250 meters / min

Trade Information
  • Supply Ability
  • Depends on Product Per Week
  • Delivery Time
  • 12-16 Week
  • Main Domestic Market
  • All India
