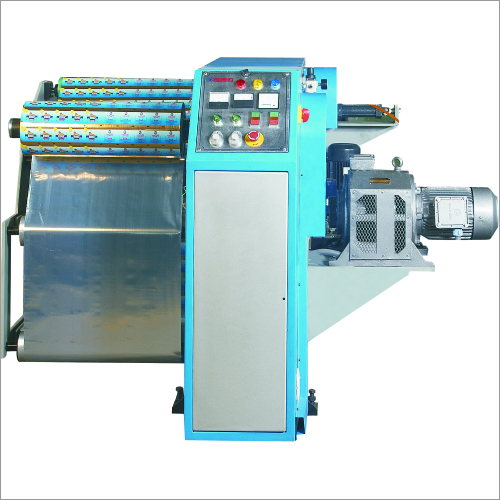

    Doctoring Machine

    Doctoring Machine
    Doctoring Machine
    Send Inquiry
    Product Code : F-03
    Brand Name : Uflex
    Price And Quantity
    • Minimum Order Quantity
    • 1 Piece
    • Price
    • 600000 INR
    Product Description
    Doctoring Machine

    By maintaining highest quality standards in our production process to deliver a flawless range of Doctoring Machine for complete client satisfaction, we are recognized as leading exporter and manufacturer of India. In the strict conformity with industry quality standards, we are manufacturing these machines using high grade materials & components. Our Doctoring Machine is used for variety of applications such as salvage & rectify, printed & unprinted and substrate after slitting.

    Features

    • Cantilever construction
    • Convenient and easy to use
    • Smooth operation

    General Description:

    We offer Doctoring Machine (Uflex DRM 400). This machine has been specially designed to unprinted/rectify printed/ salvage, substrate after slitting. The Doctoring Machine provided by us is of cantilever construction so that the loading and unloading of the rewound reel should be convenient and easy. Both the rewind and unwind shafts are mechanically expandable and therefore, the core locking and unlocking can be effected by screwing and unscrewing a pair of nuts. A pair of precision-machined steel plates, braced together with tie rods and channel section base, forms the support structure of the machine.

    The unwind shaft along with the necessary braking drum is located on sliding plate which can oscillate freely on linear motion ball bearings. The desired braking torque on the unwind reel can be manually applied through a magnetic particle powder brake. Requisite numbers of web support rollers are provided for the smooth web flow before the rewind shaft. The web path itself has been so designed that the sensor of the `Pneumo Hydraulic Edge Guide can be conveniently adjusted as per requirement. An eddy current variable speed drive is provided for smooth operation of the machine (with soft start) in the range of 0 - 120 M/min.Ink Jet Printer' can also be mounted on this machine.

    Machine Specifications:

    Maximum width of parent ree

    400 m

    Maximum parent reel dia

    400 m

    Maximum rewind reel dia

    400 mm

    Maximum designed speed

    120 M/Min.

    Core size at unwinds & rewinds

    76 mm (3"I.D.)

    Unwind & Rewind shaft

    Mechanical Expanding type

    Drive

    3 HP Eddy Current variable speeds Drive with controls.

    Floating type Unwind with Pneumo Hydraulic Edge Guide

    Complete with power pack sensor and controls with 0.5 HP AC Motor

    Trade Information
    • Supply Ability
    • Depends on Product Per Week
    • Delivery Time
    • 12-16 Week
    • Main Export Market(s)
    • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
    • Main Domestic Market
    • All India
