    Automatic Pick Fill Seal Machine

    Automatic Pick Fill Seal Machine
    Automatic Pick Fill Seal Machine
    Send Inquiry
    Product Code : F-11
    Brand Name : Uflex
    Price And Quantity
    • Minimum Order Quantity
    • 1 Piece
    • Price
    • 4500000 INR/Piece
    Product Description

    We have gained immense recognition in the worldwide market for aesthetically manufacturing and exporting a wide range of Automatic Pick Fill Seal Machine. Available with various dozing system for different products like liquid and paste, this machine is an advance mechanical robotic system that ensures no pick - no fill and no fill - no seal operations. Our Automatic Pick Fill Seal Machine is extensively used for packing powder, granules, liquids and paste in preformed pouches.

    Features:

    • Simple change over operation sequence
    • Automatic in-feed conveyor system
    • Accuracy

    Further Details

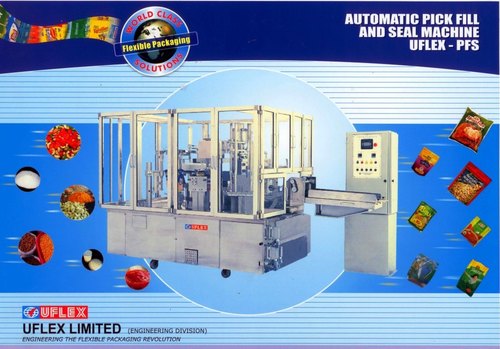

    (MODEL: UFLEX-PFS)

    Pick fill seal machine is a fully automatic, 10 station rotary indexing filling, intermittent motion and sealing machine to pack liquids, powder, granules and paste in preformed pouches like center seal pouch, three side seal pouch, stand-up pouch and zipper pouch etc. made-up of heat sealable laminated film. Automatic pick fill seal machine can be provided with the various dozing system for the products like liquid and paste. The machine is a state-of-the-art mechanical robotic system, which has a close loop smart control system, which ensures the operation:

    NO PICK - NO FILL
    &
    NO FILL - NO SEAL

    The above close loop system ensures practically negligible wastage of packing material and the product. The machine is an operator friendly machine and has a very simple change over operation sequence from one pouch size to another. The machine has an automatic in-feed conveyor system for preformed pouches and an out-feed dispensing ramp for the filled and sealed out-going pouches.

    Pick Fill Seal Machine

    1. Product to be packed
    - Liquid : Oil, MineralWater, Ketchup,Syrup, Etc.
    - Powder : Milk Powder, Heena, Various Flour Etc.
    - Granules : Tea, Peanuts,Cashew Nuts, Rice, Pulses Etc.
    - Others : Light Weight Hardware, Pickle Etc.
    2. Qty. to be packed
    - 5 gms to 1000 gms. (Depending upon product to be packed)
    3. Machine
    - Automatic Pick Fill & Seal Machine ( MODEL : FLEX - PFS )
    4. Control
    - PLC ( Programmable Logic Control )
    5. Temperature Controller
    - PID type
    6. Pouch type
    - Preformed
    7. Pouch Size

    Min.(mm)
    Max.(mm)
    Width
    90
    190 / 220 *
    Length
    100
    280 / 320 *
    * ( with additional set of pouch feeding conveyor )
    8. Filling system
    - Cup Filler, Auger Filler, Gravity Matrix, Load Cell Weigher
    9. Speed
    - 40-45 Pouches/min. (Depending upon product to be packed)
    10. Accuracy
    + 2 %
    Output & Accuracy depends on following:
    • Characteristics of product to be packed
    • Quantity of product to be packed
    • Consistency in Bulk density / Viscosity of the product
    • Consistent level of product in machine hopper
    • Maintaining RH in packing room if the product is hygroscope in nature.
    11. Power Consumption
    - 5 KW
    12. Power supply
    - 415 V/A.C/ Three Phase
    13. Utility
    - Compressor : 30 CFM, 10 Bar
    14. Feature
    - Easy Change over to Various Pouch Size
    - Sensor to Avoid Product & Pouch Wastage
    15. Optional Feature
    - Coding
    - Dust Extraction System
    (at an extra cost )
    16. Dimensions
    L=3600 mm., W= 2800 mm., H = 1900 mm.
    17. Weight
    1210 Kg. ( Approx.)


    Trade Information
    • Payment Terms
    • Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash in Advance (CID)
    • Supply Ability
    • Depends on Order Per Week
    • Delivery Time
    • 12-16 Week
    • Main Export Market(s)
    • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
    • Main Domestic Market
    • All India
